20nm WDM Module OADM Module Optical Passive Low Insertion Loss

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

20nm WDM Module OADM Module Optical Passive Low Insertion Loss

Brand Name : GaPho

Model Number : WDM Module

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Channel space (nm) : 20

Channel bandwidth (nm) : Ac ± 6.5

Add/Drop Channel Ripple (dB) : <0.4

Channel Wavelength (nm) : 1471, 1491,..1551, 1571, 1591, 1611

Contact Now

WDM Module OADM Module Optical Passive Components

◇Features:
 Low Insertion Loss
 High Channel Isolation
 High Stability, High Reliability

◇ Application:
 CWDM System
 Metro / Access Network
 CATV Fiber optic System

◇ Specifications:

Type Parameter 1ch 2ch
Channel Wavelength (nm) 1471, 1491,..1551, 1571, 1591, 1611
Channel space (nm) 20
Channel bandwidth (nm) Ac ± 6.5
Add/Drop Channel Ripple (dB) <0.4
Insertion loss (dB) Add/Drop Ch. <0.7 <1.0
Express Ch. <0.6 <1.2
Isolation (dB) Drop Adjacent Ch >30
Non-adjacent Ch >40
Add Adjacent Ch NA
Non-adjacent Ch NA
Express Channel Isolation (dB) >25
Directivity (dB) >55
Return loss (dB) >50
PDL (dB) <0.15
Wavelength thermal stability (nm/°C)) <0.003
Insertion loss thermal stability (dB/°C) <0.005
Power handling (mW) <500
Operating temperature (℃) 0*+70
Storage temperature (℃) -125
Dimensions (mm) 80x60x10 or 100x80x10 or Specify

20nm WDM Module OADM Module Optical Passive Low Insertion Loss

◇ Ordering information:

OADM Type Port Type Wavelength Pigtail Type Fiber Type Length Connector
C=CWDM 1=1ch
2=2ch		 1471-1471
1491-1291
1611-1611		 250-250um Bare fiber
900-900um Loose tube
2000-2mm Loose tube
3000-3mm Loose tube		 1=SMF-28e 1-1M
2-2M
…...
x=specify		 NE-None
FC/APC/UPC
SC/APC/UPC
LC/APC/UPC
xx=Other

Product Tags:

OADM WDM Module



20nm WDM Module



OADM Module


Cheap 20nm WDM Module OADM Module Optical Passive Low Insertion Loss for sale

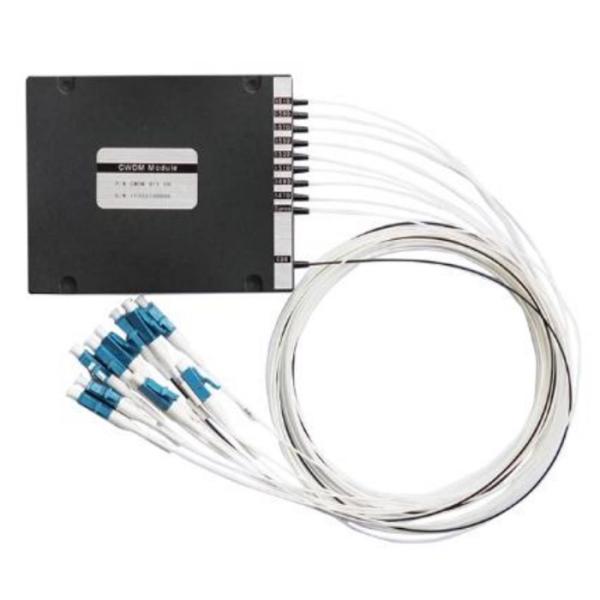

20nm WDM Module OADM Module Optical Passive Low Insertion Loss Images
